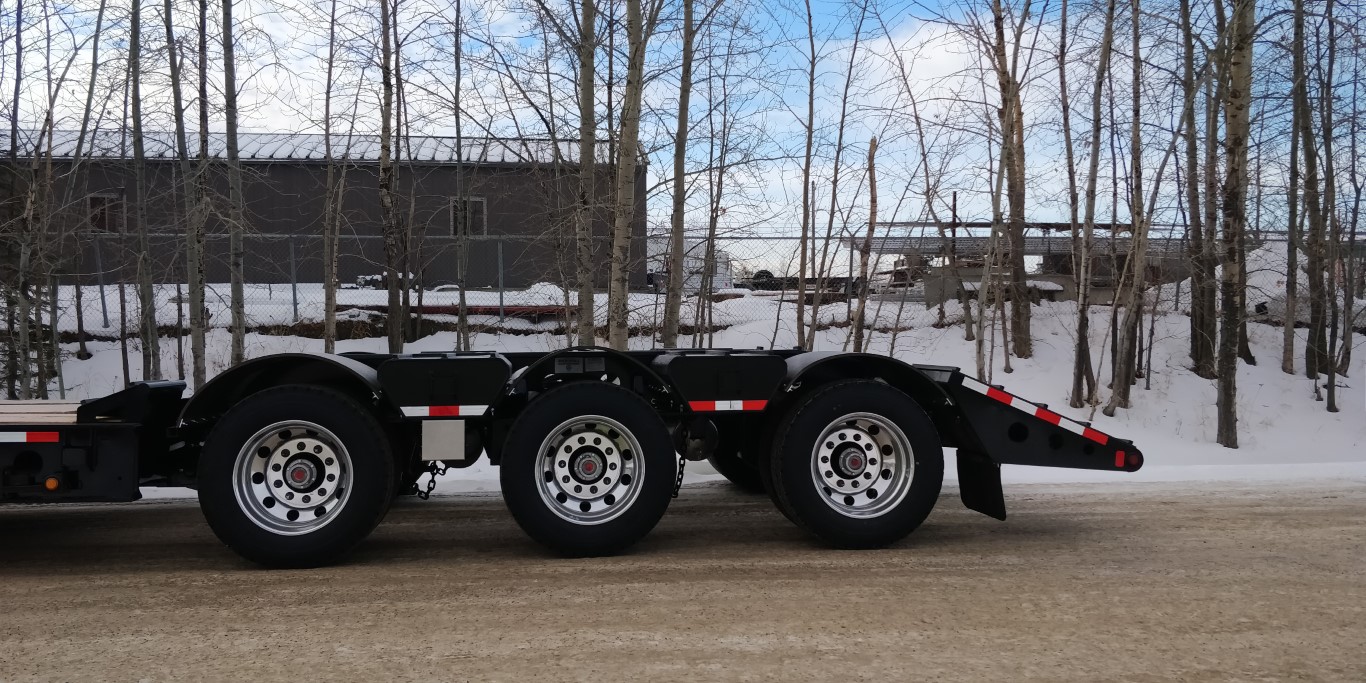

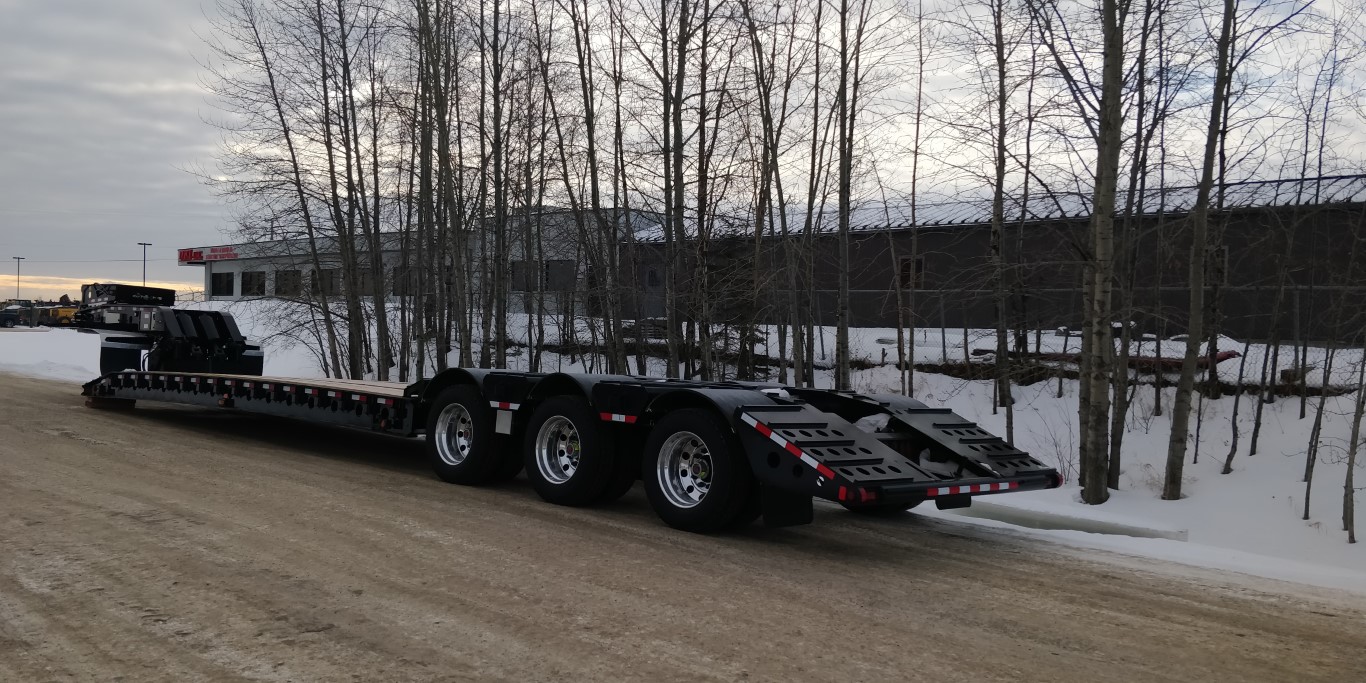

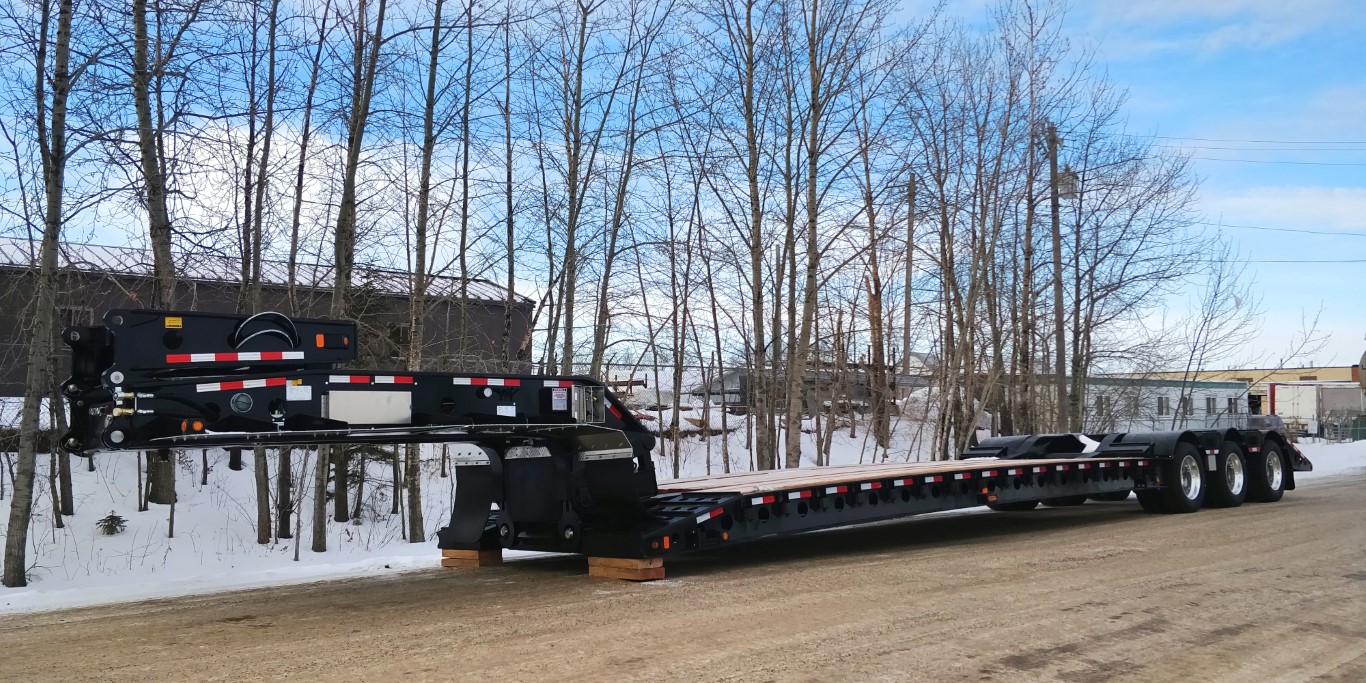

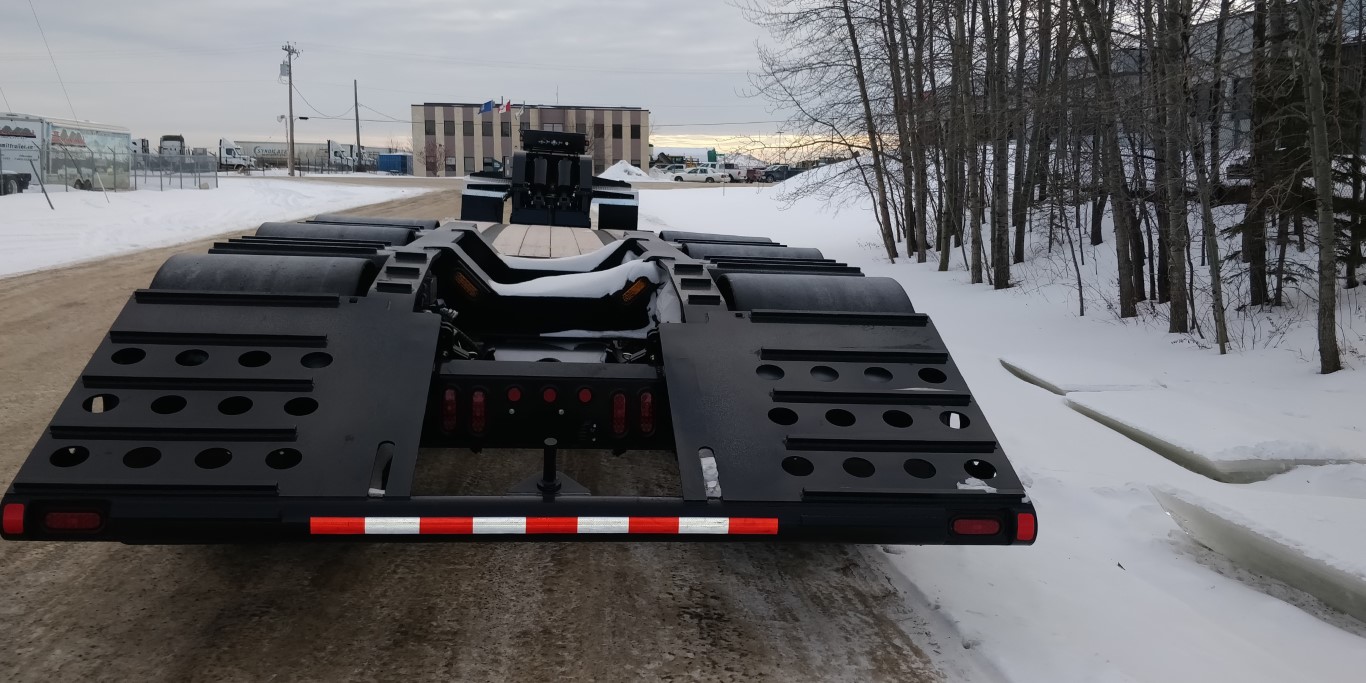

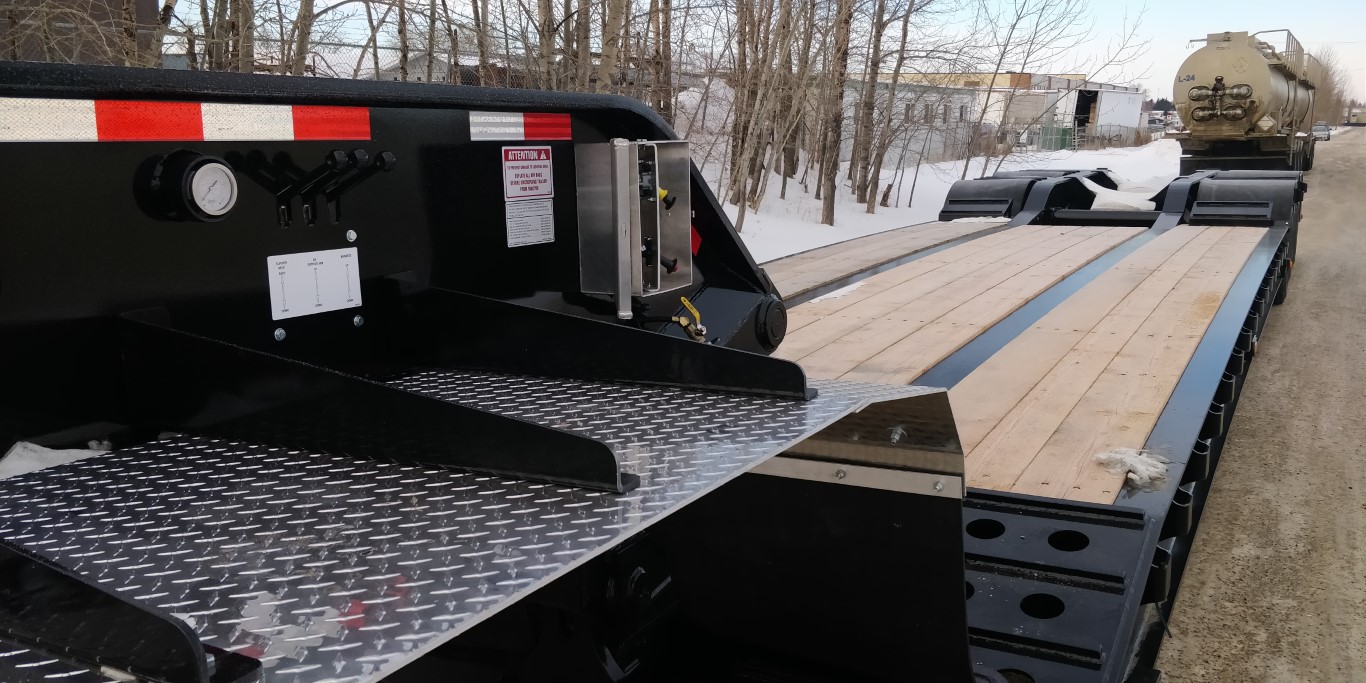

Peak 65T Hyd Detach Lowbed

• Tare Weight: Approx. 13,380 kg
• Distributed Load: 65 Ton over 15’
• Setup for a Tri Drive Truck application with drop on removable

  king pin located at 14 ½” from front

• Hydraulic system set up to run off truck wet kit
• Main Deck: 10’ Wide x 26’ long
• 30” Main Deck Height
• 2 Chain baskets
• 30,000lb Ridewell
• Brakes 16-1/2” x 7”
• 25,000 lbs axles 95” axle track for 10’ outside tire width
• LED Lights
• Swing up legs
• 275 70R22.5 Yokohama

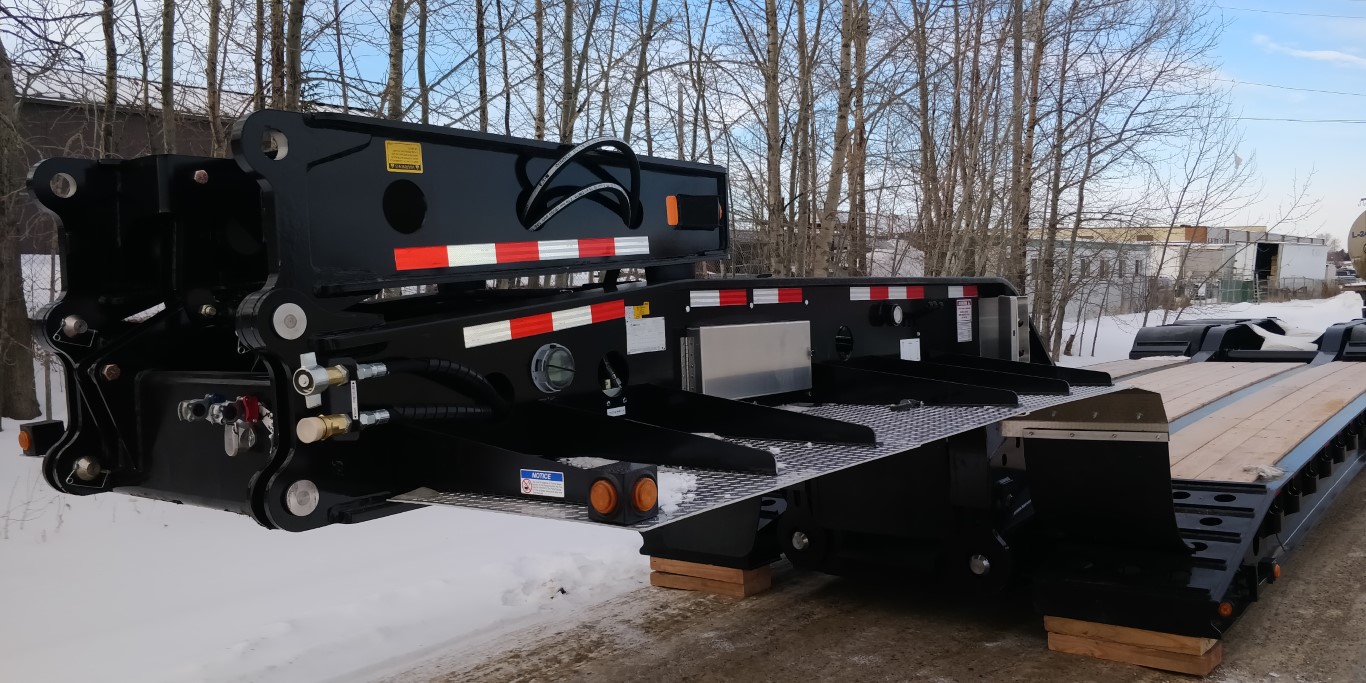

• Narrow removable gooseneck
• Pin joint Design at rear of deck
• 10” Hydraulic lift cylinders.
